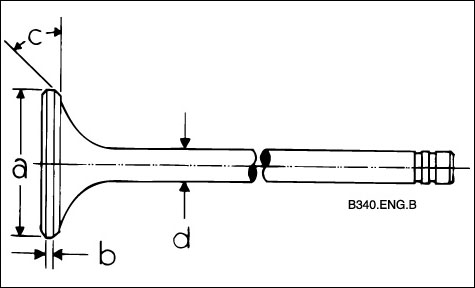

Table m. Valve specifications
| Specification | 1982 - 1987 528e | 1988 528e and all 325i | 1983 - 1988 533i, 535i |
| Valve head diameter (a) intake exhaust |
40 mm (1.575 in.) 34 mm(1.339 in.) |
42 mm (1.654 in.) 36 mm(1.417 in.) |
46 mm (1.811 in.) 38 mm(1.496 in.) |
| Minimum valve head thickness (b) intake exhaust |
1.3 mm (0.051 in.) 2.0 mm(0.079 in.) |
1.3 mm (0.051 in.) 2.0 mm(0.079 in.) |
1.3 mm (0.051 in.) 2.0 mm(0.079 in.) |
| Valve face angle (c) | 45° | 45° | 45° |
| Valve stem diameter (d) standard oversize 1 oversize 2 |
7.0 mm (0.275 in.) 7.1 mm (0.279 in.) 7.2 mm (0.283 in.) |
7.0 mm (0.275 in.) 7.1 mm (0.279 in.) 7.2 mm (0.283 in.) |
8.0 mm (0.315 in.) 8.1 mm (0.319 in.) 8.2 mm (0.323 in.) |
Engine—Reconditioning
page 13
