Fig. 5-24. Chapter 5: Intake Systems-Forced Induction

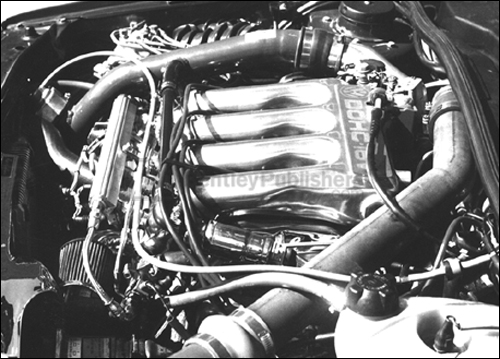

Fig. 5-24. Sometimes the packaging of a turbo system in a tight engine compartment necessitates long pipes to move air from turbo to intercooler to intake manifold. This will add to turbo lag.

Chapter 5: Intake Systems-Forced Induction
